(1) Power on: the blue and green lights flash three times.
(2) Standby mode: blue light is always on.
(3) Charging state: green light is always on.
(4) Foreign matter protection: blue and green flashing alternately.
(5) Insufficient power: two lights on at the same time.

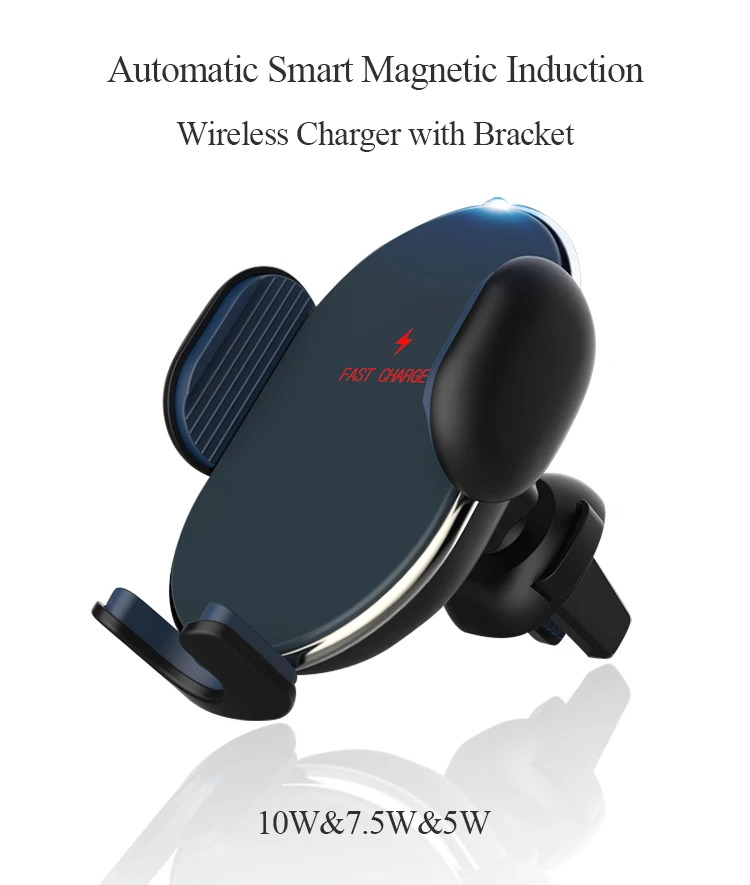

This product is a high reliability and high efficiency vehicle wireless charging transmitter. With QI standard protocol 5W mode, Samsung standard protocol 10W mode, Apple 7.5W protocol mode (non constant frequency mode).
● Support iPhone x 7.5W wireless fast charging
● Intelligent wireless power transmission control
● Conform to Qi standard A11 single coil scheme; conform to QI1.2 standard, compatible with wireless charging equipment of institute Qi
● It supports 10W fast wireless charging with a maximum output voltage of 9V-1.2A, and has good compatibility with iPhone x (7.5W) and 5W wireless chargeable mobile phones
● Dynamic input power adjustment, suitable for computer and laptop drive
● Metal foreign object detection function (FOD), safe and reliable performance
● Multiple safety guarantees: under voltage protection, over-current protection, over temperature protection, receiving and releasing bias protection
● Strong PWM driving ability, high efficiency and low temperature of the whole scheme
● LED indication of charging state and fault state
Product Basic Function Description
● TX6368A is a wireless charger control IC conforming to the wireless charging Alliance (WPC) Qi standard, which realizes all functions of wireless charger.
● The chip is designed according to the scheme of Qi standard A11 transmitter (single coil).
● The DC input supports 5V-10V.
● The chip will automatically detect all receivers that meet Qi standards, establish data communication with the receivers, and intelligently manage wireless power transmission.
● In order to increase the application flexibility, the dynamic input power adjustment function is designed.
● The user experience is greatly improved by seamlessly optimizing the use of available power on the input power supply.
● By continuously detecting the established power transmission efficiency, TX6368A supports the metal foreign object detection (FOD) function, so as to prevent the temperature from rising sharply due to the wrong way of metal objects on the wireless power transmission path.
● TX6368A will automatically process and indicate, which ensures the safety of wireless charging.

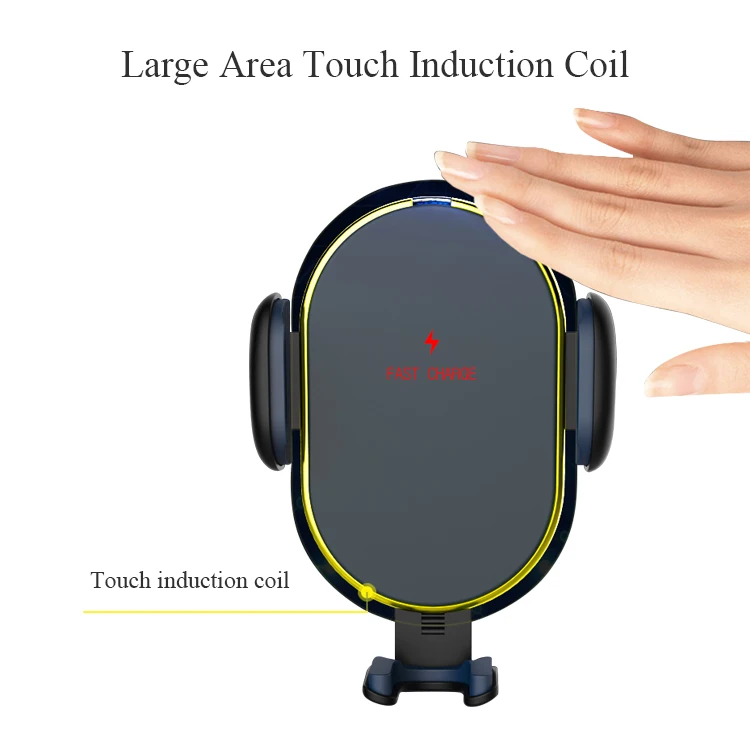

● Product electroplating touch: touch time is 1 second, and the next touch time interval is 1 second.
1. Do not put the product into the water!
2. Do not heat the product or close to the fire source!
3. Do not disassemble or transform the product without permission!
4. Do not hit the product hard!
5. Please use the adapter that meets the safety certification standard for power supply!
Absolute Maximum Rating
DC Supply Voltage
-0.3V ~ 10V
Input Voltage Range
-0.3V to V+ + 0.3V
-40℃ to +85℃
Test Conditions: ambient temperature 25 ° C
Standby Mode Power Consumption
adjust load and distance
9V Output Transmission Efficiency
load 1A output
5V Output Transmission Efficiency
load 1A output
Working Distance test
Samsung S8 / iPhone 8plus
Software Over-current Protection 1
9V input adjustment load output
Software Over-current Protection 2
5V input adjustment load output
Protection Temperature (software adjustable)
temperature protection on PCB

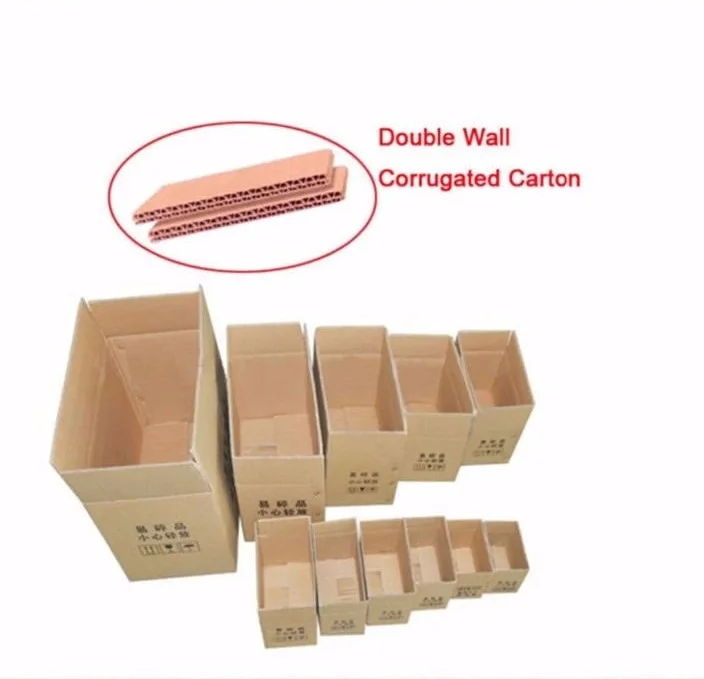

Inner package: bubble bag + white paper box or customized gift box.
Outer package: master carton box for exporting.
1. Are you a factory? Yes. We are a factory which has been in this business over 13 years.
2.Where is you factory located in? Our factory is located in Shenzhen, Guangdong Province, China. Welcome to visit our factory any time!
3. How does your factory do regarding quality control? Each product will be tested 3-5 times before shipping, QC from third department is highly welcome.
4. What is your MOQ? For Neutral item, MOQ: 100 pcs.
For ODM/OEM needs, MOQ: Negotiable.
5. Can you do ODM/OEM? Yes. We can make your brand and design, and print your logo on the products and change the color of products.
6. When will you make the delivery? We can make delivery within 7-20 days according to the quantity of your order.
